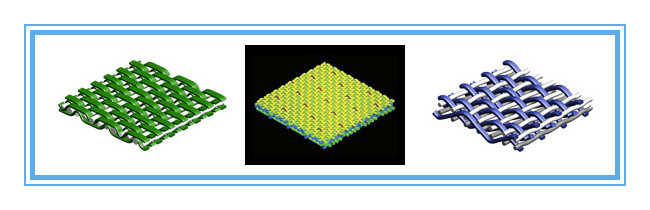

This polyester mesh fabric requires harnesses to weave.It is mainly used in the run inverted.  The fabric has high CMD support and two quite uniform hole sizes compared to other harness satin weave. This fabric gives high wire mark when run inverted and low wear volume on the machine side.

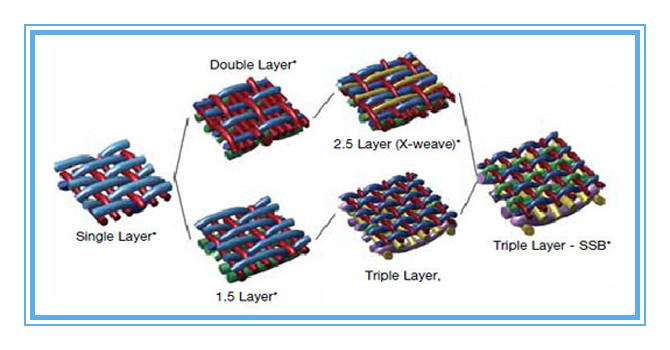

Double-Layer polyester forming fabrics, for the paper machine direction cross section of this weave pattern shows that it floats over two on the sheet side through two in the center plane. Then it is down and under one bottom side yarn coming back up to the center plane and floating two in the center before repeating the float on the top two.

The polyester wire fabric mark is considerably less than the E-weave above .It is one reason why the polyester mesh fabric was used for producing European Rotogravure.The paper machine sheet side surface of this fabric has one very large paper machine direction hole.The fabrics is a second hole that is so small it does not play any role in drainage and should therefore be ignored.
